  • Scotch Yoke Actuator

    Flow Control Regulator

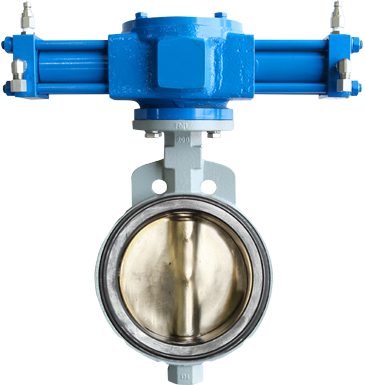

    Scotch Yoke type Actuator is designed structure that change pushing motion of Pin on Rod to 90 degree rotational motion of Arm by hydraulic pressure supplied from outside of flow control regulator.

  • Flow Control Regulator

Specification

Specification
Max. Working Pressure
135 kg/㎠
Operating Fluid
Hydraulic Oil
Temp. Range
-20℃ - 80℃
Actuator Type
Double Acting
Travel Stop
90±5 Control Possible

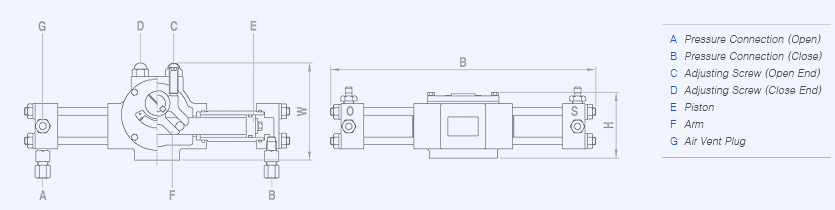

Dimension Table

Dimension Table Model HAA-D03 HAA-D05 HAA-D06 HAA-D08 HAA-D10 HAA-D12 HAA-D14 HAA-D18 HAA-D20
B (mm) 350 550 575 728 924 1,112 1,408 1,855 2,470
W (mm) 130 203 225 320 430 510 584 755 820
H (mm) 91 131 155 195 208 235 314 395 468
Weight (Kg) 8 22 34 75 130 230 350 800 1,440
Oil Vol (cc) 71 260 500 1,150 1,650 3,200 4,500 10,200 15,700
Torque (N,m) 140 590 1,240 2,450 4,970 9,400 15,380 34,000 52,300
Flow Control Regulator
