  • HYD. Portable Hand Pump

    Hydraulic Actuator System

    Portable hydraulic supply equipment that is used to drive hydraulic actuators or equipment for hydraulic actuation system. Composed of single or double acting to fit hydraulic supply type of connecting product and it can be used by adding various accessories. (relief valve, bypass valve, pressure gauge, etc.)

  • Hydraulic Actuation System
  1.
  2. Hydraulic Actuation System

    Porable Hand Pump Standard type

  3. Hydraulic Actuation System

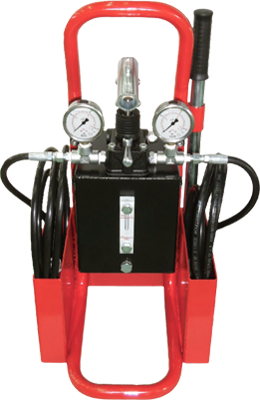

    Porable Hand Pump Cart type

  4.

Specification

Specification
Type
Standard
Cart
Model
HHP-S-2B
HHP-C-45B
Max. Pressure
700 ㎏/㎠
280 ㎏/㎠
Min. Pressuree
20 ㎏/㎠
20 ㎏/㎠
Operating Fluid
Hydraulic Oil
Hydraulic Oil
Operating Type
Single / Double Acting
Single / Double Acting
Volume per Stroke
31 ㏄
45 ㏄
Oil Tank Capacity
2300 ㏄
5000 ㏄
Dimension (W x L x H)
660 x 150 x 160
330 x 330 x 650
Weight
13 ㎏
25 ㎏
