    Hydraulic Air Compressor

    The Riser Yoke Guide Beam guides to transport the Riser Pipe form Deck to Riser Catwalk Platform tower safely and steadily.
    All function is hydraulic operated and controlled from local control panel on hydraulic air compressor.

  • Hydraulic Air Compressor
  1.
  2. Hydraulic Air Compressor

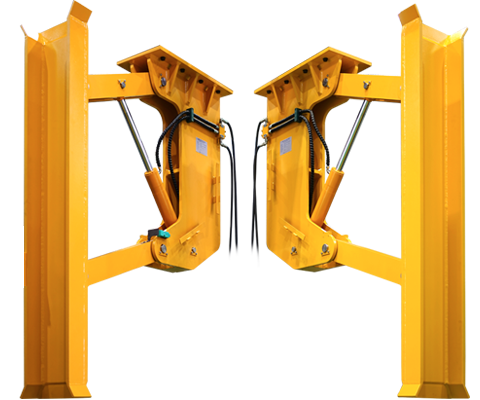

    Riser Yoke Guide Beam

  3. Hydraulic Air Compressor

    Control Console

  4.

Specification

Specification
Project
Drillship
Project Name
Ocean Rig
Item
Riser Yoke Guide Beam
Class
ABS
Material
DH36
Area Classification
Zone 2
Design Temp.
-20℃ to +45℃
Max. Working Pressure
207 bar
Weight
1,250 kg
Size
3,000×2,000

Design verification

Design verification Hydraulic Air Compressor

3D Modeling

 Hydraulic Air Compressor

Analysis

Operating Test

Operating Test Hydraulic Air Compressor

Full Extend

 Hydraulic Air Compressor

Full Retract
