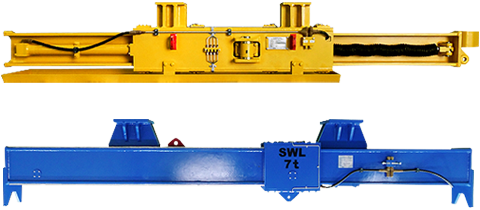

Telescopic Boom
Moving Type Telescopic Boom
The Telescopic Boom (Arm) is designed improvement to make easy pulling of Mux cables which are connected to Riser System. During running of Riser, Telescopic Boom (Arm) will be extended to make a steep cable angle for operator to pull with less force. When clamping of cable is completed, then telescopic boom will be retracted for avoid interference with tension ring wire of hydraulic air compressor. All function is hydraulic operated and controlled from local control panel.

Specification	Project Drillship
	Project Name PDC / Pride / Seadrill / QGOG / Ocean Rig
	Item Telescopic Boom (Arm)
	Class ABS / DNV
	S.W.L 3 Ton / 5 Ton / 7 Ton
	Material DH36
	Area Classification Zone 2
	Design Temp. -20℃ to +45℃
	Max. Working Pressure 207 bar
	Weight 1,350kg(3 Ton) / 2,500kg(5 Ton) / 2,700kg(7 Ton)
	Size 5000×650×650(3 Ton) / 5500×450×950(5 Ton) / 5500×450×950(7 Ton)

3D Modeling

Analysis

Load Test ABS - Lifting Appliances (SWL×1.25) /
DNS - DNV-OS-E101 (SWL×1.25)

3.8ton load test

10.5ton load test
