  • Water Shut-off Valve

    Flanged Gate Valve

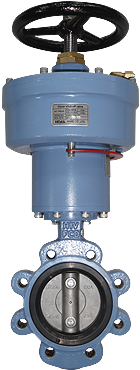

    Water shut-off valve is product that automatically opens or closes cooling water supply line when engine operation started and stopped. Combined product by single acting actuator of spring return type and butterfly valve or ball valve or flanged gate valve. Automatically opens or closes valve when the required pressure is formed at the actuator, also has a manual handle that can be manually opened or closed in an emergency.

  • Flanged Gate Valve
  1.
  2. Flanged Gate Valve

  3. Flanged Gate Valve

  4.

Specification

Specification
Working Pressure
5bar
Service Medium
Sea Water, Fresh Water
Operating Type
Single Acting (Spring Return)
Flange Size
JIS 5K, 10K, PN6, PN10
Actuator Operating Pressure
Opening Start : 2.7bar / Full Open : 4bar / Full Close : 2bar
Size
25A (Ball Valve) / 65A-150A (Butterfly Valve)
