Special Valve

Home → Product → Special Valve → Hydraulic Directional Valve

  1.

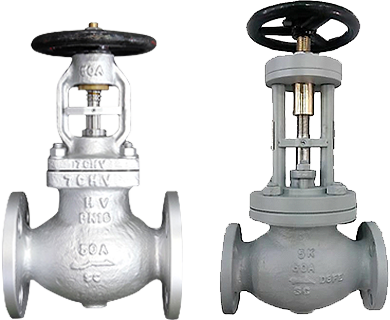

  2. Hydraulic Directional Valve

    Bellows Valve

  3. Hydraulic Directional Valve

    Balancing Valve

  4.

Specification

Specification
Max. Working Pressure
20 ㎏/㎠
Fluid
Thermal oil, Water, Steam, Gases, Oil ect.
Temp. Range
0 - 280℃
Face to Face
Maker Standard
Materials
Body (SC480) / Bonnet (SC480) / Disc (SUS304) / Seat (SUS304) / Bellows (AISI 316Ti)
Rating
JIS 10 ㎏/㎠ , 16 ㎏/㎠ , 20 ㎏/㎠
Size
15A - 300A
  • Hydraulic Directional Valve

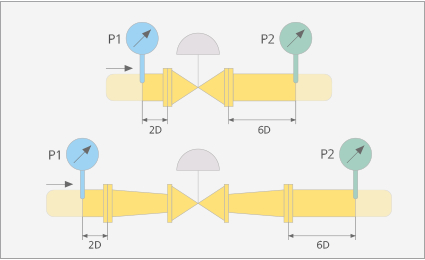

  • · Kv calculation is defined in DIN EN 60534.
    · Kv value is measured with water at 20°C and 1bar differential pressure.
    · You have to calculate with Q flow rate in m3/h Converting from
    Kv to Cv Kv X 1,17 = Cv
