Manual HYD. Remote Control System

  • Scotch Yoke Actuator

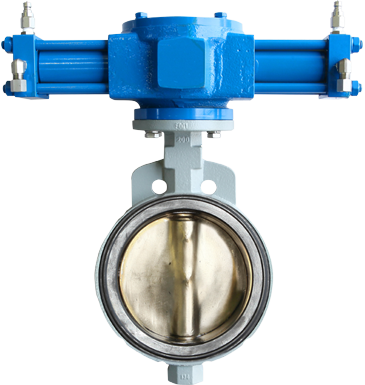

    외부로부터 공급되는 유압에 의해 ROD의 PIN을 밀어 ARM 을 90도 회전운동으로 전환하는 구조로 Butterfly valve, Ball valve, Plug valve 등에 적용된다.

Specification

Specification
Max. Working Pressure
135 kg/㎠
Operating Fluid
Hydraulic Oil
Temp. Range
-20℃ - 80℃
Actuator Type
Double Acting
Travel Stop
90±5 Control Possible

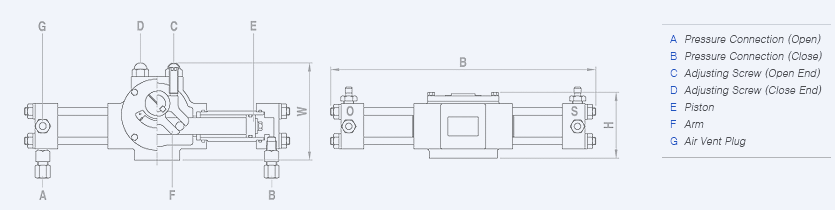

Dimension Table

Dimension Table Model HAA-D03 HAA-D05 HAA-D06 HAA-D08 HAA-D10 HAA-D12 HAA-D14 HAA-D18 HAA-D20
B (mm) 350 550 575 728 924 1,112 1,408 1,855 2,470
W (mm) 130 203 225 320 430 510 584 755 820
H (mm) 91 131 155 195 208 235 314 395 468
Weight (Kg) 8 22 34 75 130 230 350 800 1,440
Oil Vol (cc) 71 260 500 1,150 1,650 3,200 4,500 10,200 15,700
Torque (N,m) 140 590 1,240 2,450 4,970 9,400 15,380 34,000 52,300
