Offshore Part

  • Riser Yoke Guide Beam

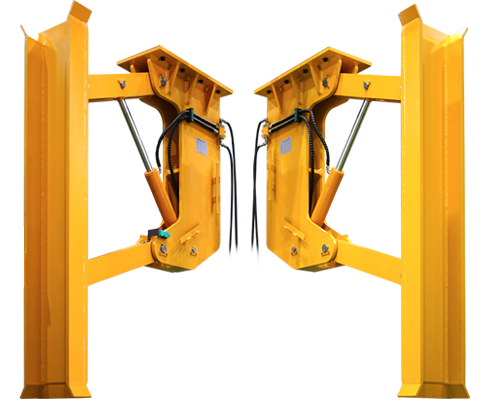

    The Riser Yoke Guide Beam guides to transport the Riser Pipe form Deck to Riser Catwalk Platform tower safely and steadily.
    All function is hydraulic operated and controlled from local control panel.

  1.

  2. Riser Yoke Guide Beam

  3. Control Console

  4.

Specification

Specification
Project
Drillship
Project Name
Ocean Rig
Item
Riser Yoke Guide Beam
Class
ABS
Material
DH36
Area Classification
Zone 2
Design Temp.
-20℃ to +45℃
Max. Working Pressure
207 bar
Weight
1,250 kg
Size
3,000×2,000

Design verification

Design verification

3D Modeling

Analysis

Operating Test

Operating Test

Full Extend

Full Retract
