  • Rack & Pinion Actuator

    Hydraulic Actuator

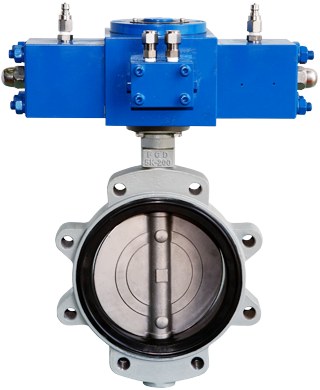

    Rack & Pinion Gear type Actuator is designed structure that change pushing motion of Rack gear to 90 degree rotational motion of Pinion gear by hydraulic actuator pressure supplied from outside.

  • Hydraulic Actuator

Specification

Specification
Max. Working Pressure
135 kg/㎠
Operating Fluid
Hydraulic Oil
Temp. Range
-20℃ - 80℃
Actuator Type
Double Acting
Travel Stop
90±5 Control Possible

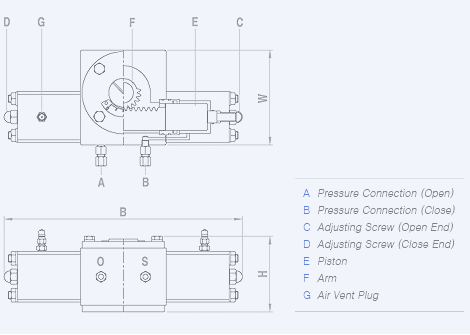

Dimension Table

Dimension Table Model HAG-D03 HAG-D05 HAG-D07 HAG-D10
B (mm) 270 420 525 660
W (mm) 120 175 215 280
H (mm) 100 135 180 220
Weight (Kg) 11 32 62 130
Oil Vol (cc) 29 92 243 666
Torque (N,m) 122 392 1,060 2,825
