Home → Product → Offshore Part → Retractable Test Stump Handler

  1. Hydraulic Actuation System

    Fixed type

  2. Hydraulic Actuation System

    Skid type

  3. Hydraulic Actuation System

    Swing type

Specification

Specification
Project
Drillship
Project Name
PDC / Pride / Seadrill / QGOG / Ocean Rig / Cobalt / Sonangol / Transocean
Item

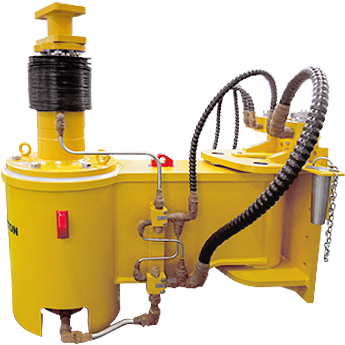

Retractable Test Stump Handler
Class
ABS / DNV
S.W.L
3 Ton / 20 Ton / 25 Ton / 30 Ton / 35 Ton
Material
DH36
Area Classification
Zone 2
Design Temp.
-20℃ to +45℃
Max. Working Pressure
207 bar
Weight
1700kg(Fixed) / 1200kg(SKID) / 1200kg(Swing)
Size
1200×1200×2900(Fixed) / 2900×700×1500(SKID) / 1300×540×1260(Swing)

Design verification

Design verification Hydraulic Actuation System

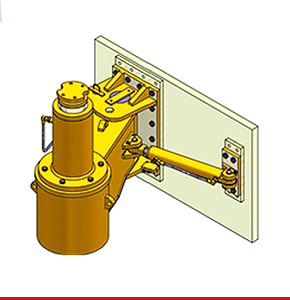

3D Modeling

 Hydraulic Actuation System

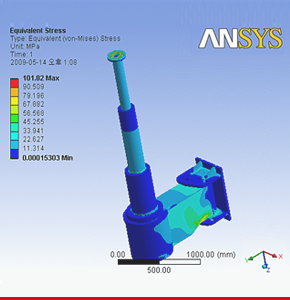

Analysis

Load Test ABS - Lifting Appliances (SWL+5t) / DNS - DNV-OS-E101 (SWL+5t)

Load Test ABS - Lifting Appliances (SWL+5t) /
DNS - DNV-OS-E101 (SWL+5t) 		Hydraulic Actuation System

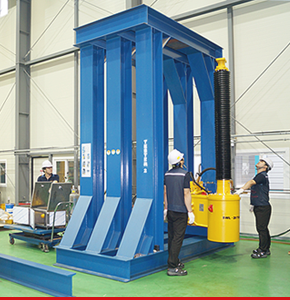

25ton load test

 Hydraulic Actuation System

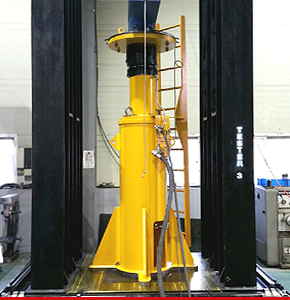

40ton load test
